Evaluate the structural response of a car wheel rim under representative loading and boundary conditions while identifying critical stress and deformation regions.
FEA / Structural Simulation
Static Structural Analysis of Car Wheel Rim
Static structural analysis of an automotive wheel rim to evaluate deformation, stress distribution and structural behaviour under applied loading condition
SoftwareSolidWorks, Ansys
AnalysisStatic Structural
Prepared the wheel-rim model for analysis, defined material properties, generated the finite-element mesh, applied appropriate loads and constraints, and evaluated the simulation results.

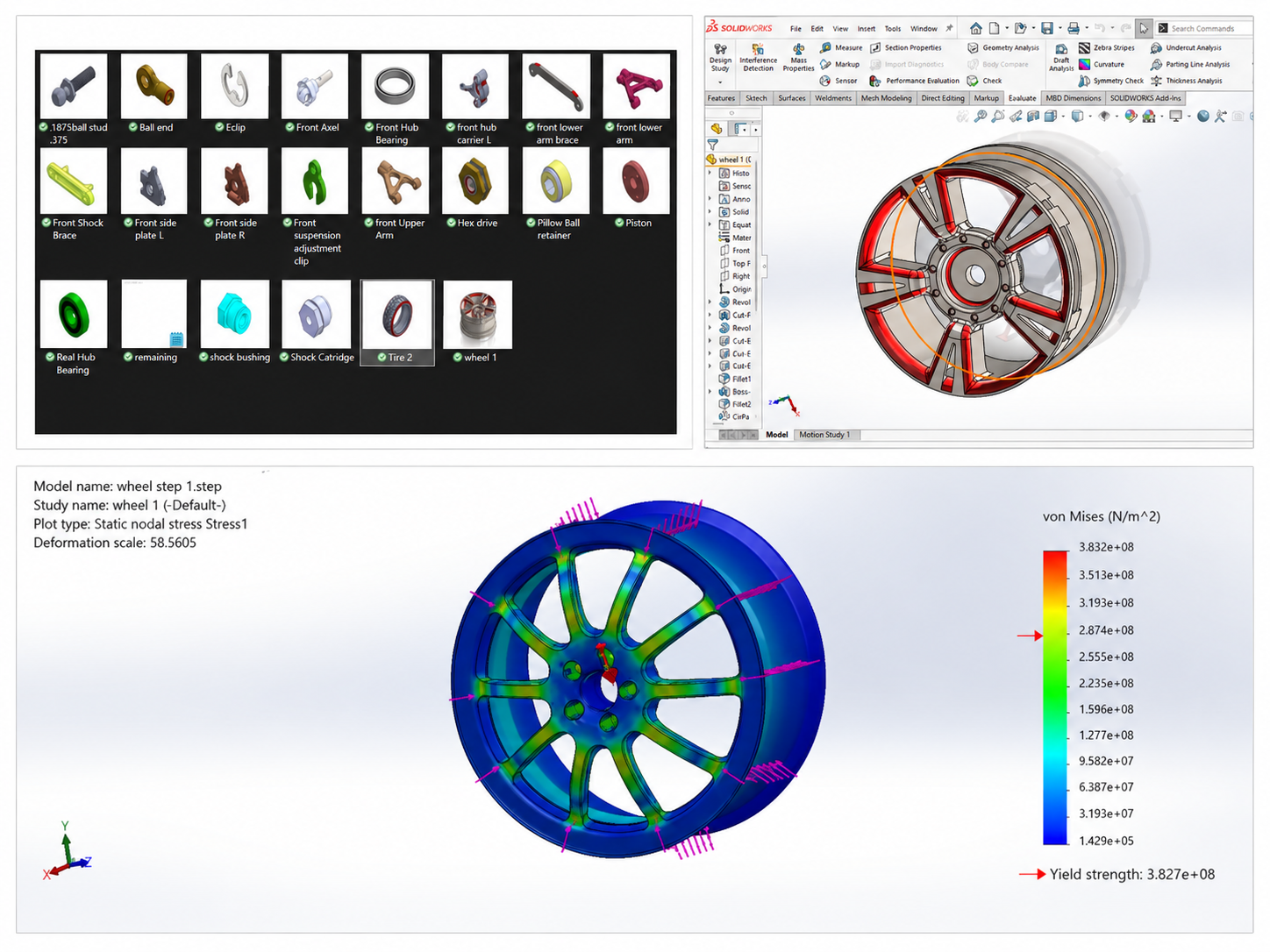

Determined the total deformation and equivalent von Mises stress distribution, allowing critical regions of the wheel rim to be identified and its structural behaviour to be assessed.
3D CAD model, finite-element mesh, boundary-condition setup, total deformation results, equivalent stress results and simulation report.
