Develop a compact lifting and positioning mechanism capable of providing controlled vertical and rotational movement for assisted aquatic access.
CAD / Machine Design
Motorised Pool Lift for Assisted Aquatic Access
Mechanical design and working animation of a motorised pool lift developed to provide controlled assisted access to swimming pools.
SoftwareSolidWorks
OutputCAD + Drawings + Working Animation +3D Printed Scaled Model
Developed the mechanical configuration using a rope-drum lifting mechanism together with rack-and-pinion systems at the base and cantilever arm, and created the CAD assembly and working animation.
Produced a complete mechanical concept demonstrating controlled lifting, positioning and rotational movement for pool access.

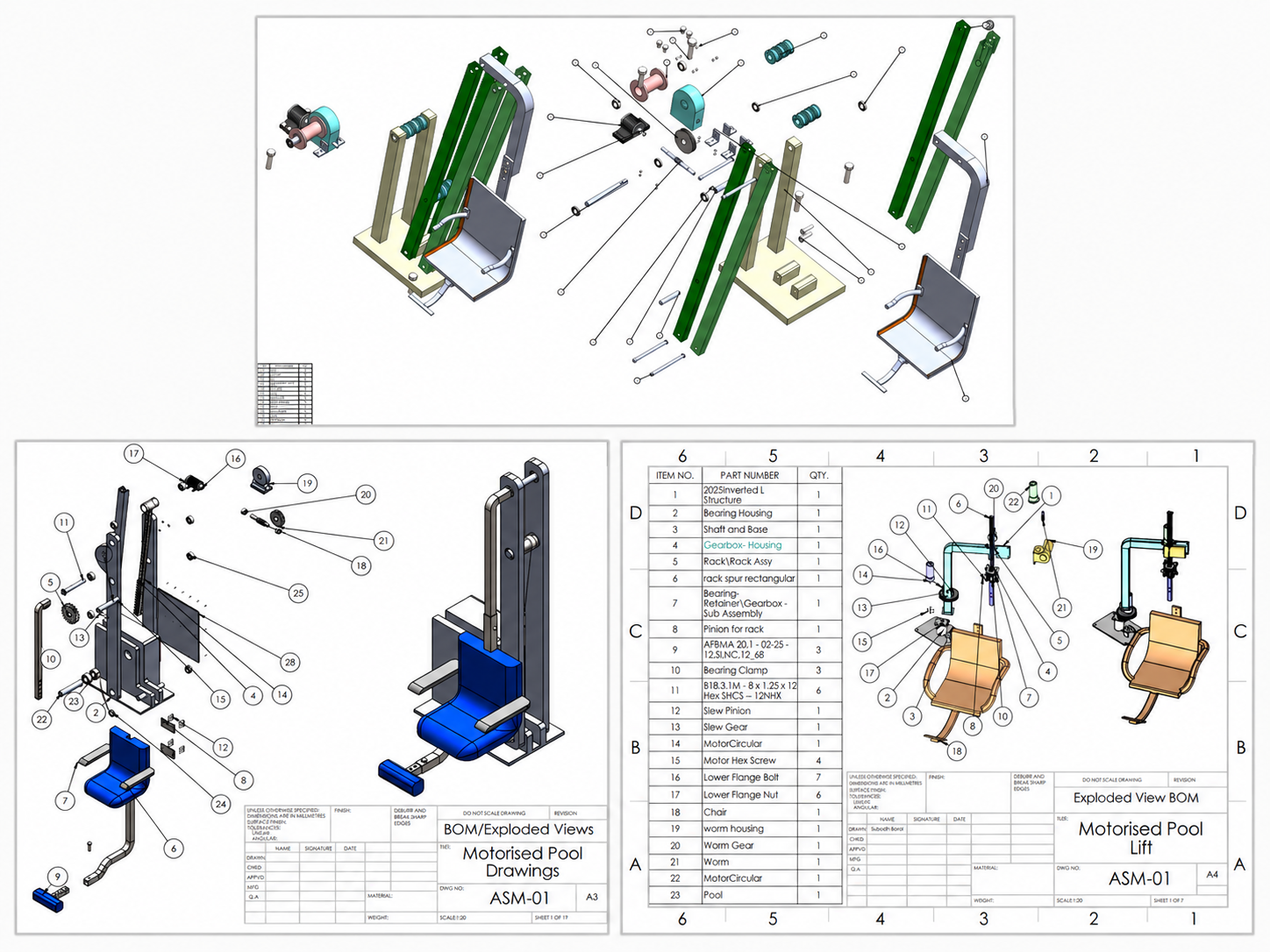

3D components, complete assembly, mechanism layout, working animation and technical drawings, Scaled Model for 3D Printing and Prototyping
